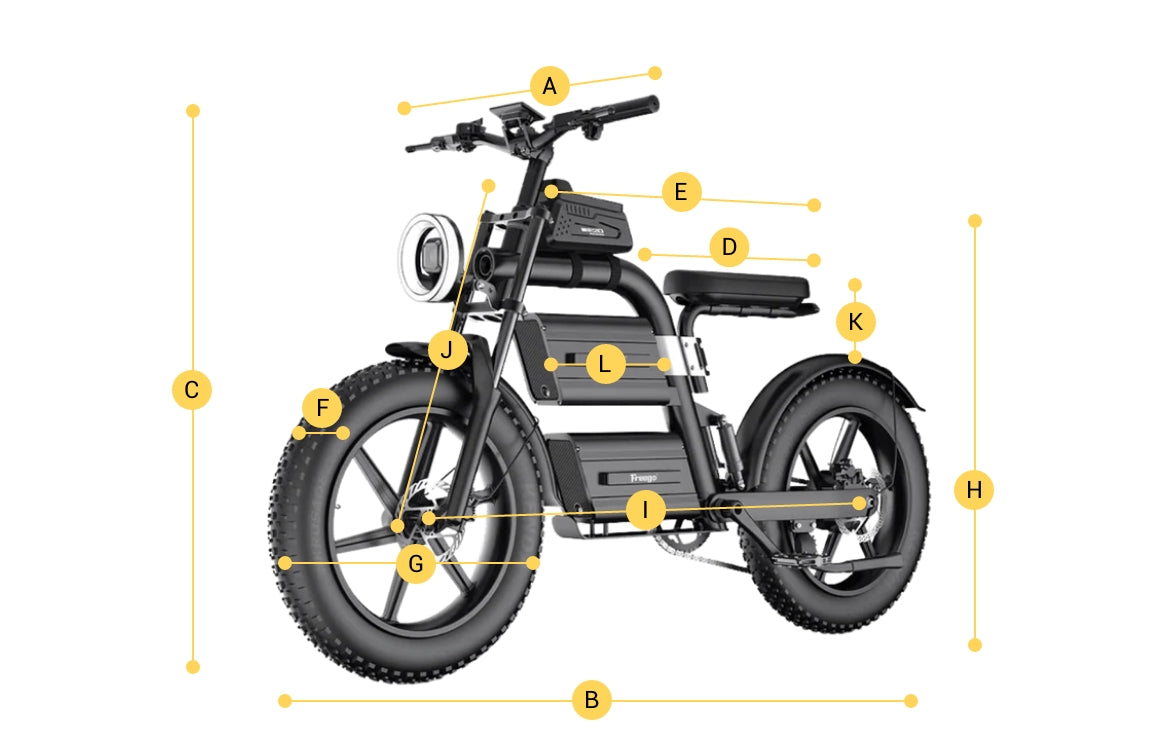

Geometry
Geometry

-
A - Handlebar Length
25.5"/65cm
-
B - Total Length
70.1"/ 178cm
-
C - Total Height
42.1"/ 107cm
-
D - Seat Length
14.6"/ 37cm
-
E - Top Tube Length
30.3"/77cm
-
F - Tire Width
4"/ 10cm
-
G - Wheel Diameter
23.6"/60cm
-
H - Seat Height
31.1"/ 79cm
-
I - Wheelbase
46.5"/ 118cm
-
J - Head Tube Length
20.1"/ 51cm
-
K - Seat Height from Tire
7.1"/ 18cm
-
L - Battery Length
11.4"/ 29cm
Specification
Specification
-
Motor Power (Nominal)
1000W DC Brushless (2100W Peak)
-
Battery
60V, 40AH (2336Wh)
-
Riding Range
43–75 mi (69–120 km)
-
Speed
Class 2: 20MPH, Off-Road Mode Available
-
Frame
Steel+Aluminium Alloy
-
Display
LCD Display
-
Max Loading
330 lbs (150kg)
-
Net Weight
110 lbs (50kg)
-
Charging Time
7-8 H
-
Transmission Gears
5 Speed Gear
-
Brake System
Front+Rear Hydraulic Brake
-
Wheel Size & Tires
20 Inch Fat Tires
-
Suspension
Full Suspension for Front & Rear
-
Rear Brake Light
Yes
-
Charger Specification
Output: 67.2V, 5A; Input: 100-240V, 50/60Hz
-
Package Size
59 × 11.8 × 32 in (150 × 30 × 83 cm)
-
Suggested Rider Height
5'4"-6'5"
what's in the box
what's in the box
-
20'' x 4" Tire*2
-
60V, 20AH*2
-
Charger*2
-
Pedals*2
-
Front and rear light
-
Owner's manual
-
Bicycle Seat
-
Bicycle frame
